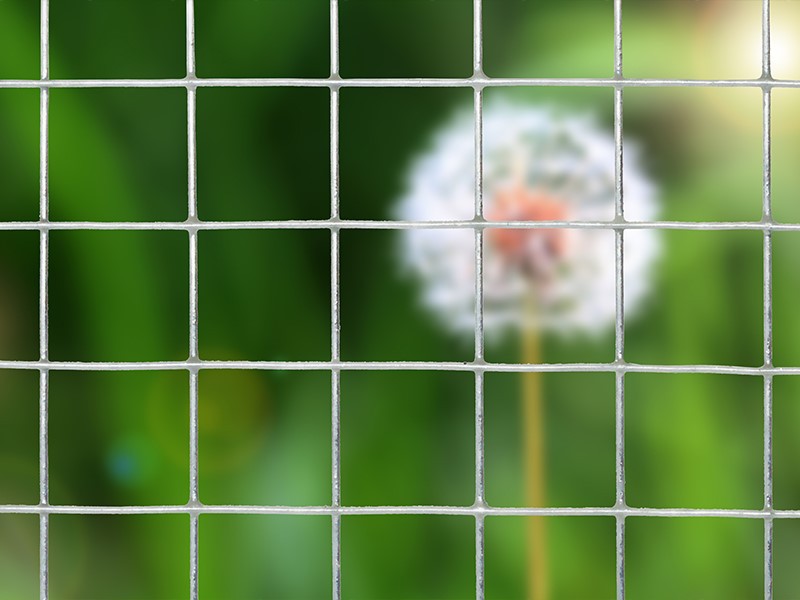

Galvanized Welded Wire Mesh
* Adaptable for all fencing needs and DIY.
* Remains perfectly straight and flat.
* Smooth and uniform mesh edge.
* Welded cross wires for added strength.
* Uniform bright galvanizing.
* Extreme corrosion resistant.
* Easy to handle and carry.
* Easy to install.
Introduction：
Galvanized welded wire mesh is a kind of metal mesh that is welded together with mutual vertical metal wire to form a grid-like pattern. The term "galvanized" refers to the process of applying a layer of zinc at the surface of the metal wire to prevent corrosion and rusting.
Galvanized welded wire mesh is a versatile material that has many applications in various fields. Here are some common uses:
In agriculture: Galvanized welded wire mesh used to make livestock cages. It provides a safe and secure environment for the poultry.
In security: Galvanized welded wire mesh is often used as protection fencing for windows and screen doors in residential communities.
In industry: Galvanized welded wire mesh is often used around machinery to prevent mechanical damage or injury to non-technical personnel.
According to the different production processes, it can be divided into 4 categories:
Hot dipped galvanized welded wire mesh before welding: First, anneal the mental wire and decontaminate it. Then, dip it in the molten zinc solution for a period of time, and a tight zinc layer will be formed on its surface. Finally, weld the wire mesh according to the preset mesh specifications.
Hot dipped galvanized welded wire mesh after welding: First, anneal the mental wire and decontaminate it. Then, weld the wire mesh according to the preset mesh specifications. Finally, dip it in the molten zinc solution and place it for a period of time, a zinc layer is formed on its surface.
Electro galvanized welded wire mesh before welding: First, anneal the mental wire and decontaminate it. Then, immersed in electrolyte solution containing zinc salt for a period of time, a zinc layer will be formed on its surface by a displacement reaction. Then weld the wire mesh according to the preset mesh specifications.
Electro galvanized welded wire mesh after welding: First, anneal the mental wire and decontaminate it. Then, weld the wire mesh according to the preset mesh specifications. Finally, immerse it in electrolyte solution containing zinc salt for a period of time, a zinc layer will be formed on its surface by a displacement reaction.
Specification:
|
Galvanized Welded Wire Mesh |
|||||
|
Mesh Opening |
Wire Thickness |
Width |
|||
|
Inch |
MM |
BWG |
MM |
Inch |
M |
|
1/4 x 1/4 |
6 x 6 |
26; 25; 24; 23; 22; 21 |
0.45-0.80 |
12-48 |
0.3-1.2 |
|
3/8 x 3/8 |
10 x 10 |
26; 25; 24; 23; 22; 21; 20; 19 |
0.45-1.00 |
12-48 |
0.3-1.2 |
|
1/2 x 1/2 |
13 x 13 |
25; 24; 23; 22; 21; 20; 19; 18; 17; 16 |
0.50-1.65 |
12-80 |
0.3-2.0 |
|
5/8 x 5/8 |
16 x 16 |
25; 24; 23; 22; 21; 20; 19; 18; 17; 16 |
0.50-1.65 |
12-48 |
0.3-1.2 |
|
3/4 x 3/4 |
19 x 19 |
25; 24; 23; 22; 21; 20; 19; 18; 17; 16 |
0.50-1.65 |
12-80 |
0.3-2.0 |
|
1/2 x 1 |
13 x 25 |
22; 21; 20; 19; 18; 17; 16; 15; 14 |
0.70-2.10 |
12-80 |
0.3-2.0 |
|
1 x 1 |
25 x 25 |
22; 21; 20; 19; 18; 17; 16; 15; 14 |
0.70-2.10 |
12-80 |
0.3-2.0 |
|
1-1/4 x 1-1/4 |
30 x 30 |
20; 19; 18; 17; 16; 15; 14; 13; 12 |
0.90-2.80 |
12-80 |
0.3-2.0 |
|
1-1/2 x 1-1/2 |
40 x 40 |
20; 19; 18; 17; 16; 15; 14; 13; 12 |
0.90-2.80 |
12-80 |
0.3-2.0 |
|
1 x 2 |
25 x 50 |
19; 18; 17; 16; 15; 14; 13; 12 |
1.00-2.80 |
12-80 |
0.3-2.0 |
|
2 x 2 |
50 x 50 |
18; 17; 16; 15; 14; 13; 12 |
1.20-2.80 |
12-80 |
0.3-2.0 |
|
2 x 3 |
50 x 75 |
16; 15; 14; 13; 12 |
1.60-2.80 |
12-80 |
0.3-2.0 |
|
2 x 4 |
50 x 100 |
16; 15; 14; 13; 12 |
1.60-2.80 |
12-80 |
0.3-2.0 |
|
3 x 3 |
75 x 75 |
16; 15; 14; 13; 12 |
1.60-2.80 |
12-80 |
0.3-2.0 |
|
3 x 4 |
75 x 100 |
16; 15; 14; 13; 12 |
1.60-2.80 |
12-80 |
0.3-2.0 |
|
4 x 4 |
100 x 100 |
16; 15; 14; 13; 12 |
1.60-2.80 |
12-80 |
0.3-2.0 |
|
6 x 6 |
150 x 150 |
16; 15; 14; 13; 12 |
1.60-2.80 |
12-80 |
0.3-2.0 |
